Verdict: below roughly 700 heated square feet, electric is the cheaper system to own
An electric system on a 20 x 20 ft Overland Park driveway draws 4 kW as tire tracks or 20 kW as full coverage, costs $0.64 to $3.20 an hour at 16¢/kWh, and asks for no annual servicing. A hydronic system pumps a glycol-water mix through PEX tubing from a boiler: it needs more capital up front, carries $150 to $400 a year in maintenance, and only pulls ahead on large heated footprints where cheap natural gas or propane beats electric resistance heat. For a typical two-car Johnson County driveway, the electric cable system wins on both install and cost of ownership.
What each system actually puts under the slab
Both technologies do the same job: turn solid snow into liquid water and hold the surface above freezing so meltwater cannot refreeze. The governing bid specification allows two element types inside concrete - electric twin-conductor heating cables in a loose WSM-series format, or pre-spaced WSMM mesh mats - both designed to deliver 50 watts per square foot of heated area at 240 V, buried 1.5 to 3.0 inches below the finished surface.
A hydronic system replaces that resistance cable with a boiler, a pump, a manifold and flexible PEX tubing carrying glycol-water. Nothing about it is exotic; it simply adds moving parts and fluid to a slab that already has to cope with freeze-thaw cycling and clay subgrade movement.
| Element | Electric cable and mats (WSM, WSMM) | Hydronic PEX |
|---|---|---|
| Buried component | Twin-conductor resistance cable at 3 in. spacing, zip-tied to galvanised wire mesh | PEX tubing loops carrying glycol-water, plus boiler, pump and manifold |
| Design output | 50 W/sq ft at 240 V (38 W/sq ft where loose cable is laid at 4 in. spacing) | Boiler rated in BTU/hr with outdoor-reset supply temperature |
| Sensing and control | Forecast-based Wi-Fi controller, aerial snow switch, in-slab limit sensor | Outdoor sensor, boiler aquastat, zone valves and circulation pumps |
| Other services required | Dedicated GFEP double-pole breakers; 40 A maximum continuous per branch circuit | Gas or propane supply and a flue, plus pump wiring and glycol fill |

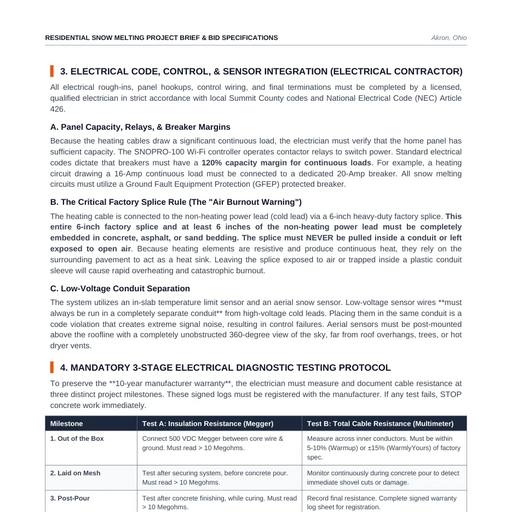

The most expensive field error in the electric trade is easy to state: the 6-inch factory hot-to-cold splice is an active part of the resistive line and must be fully embedded in concrete, asphalt or sand bedding, where the pavement acts as a heat sink. Pulled inside a conduit to keep it clean, it overheats and burns out in minutes. Hydronic systems have no splice to bury, but they do have a boiler to flue and
The two systems are quoted in different units, which is why bids are harder to compare than they should be. Electric systems are sold in watts per square foot; a hydronic boiler is rated in BTU per hour. At 3,412 BTU per kW, the same 50 W/sq ft design output is 170.6 BTU per sq ft per hour, so a 400 sq ft heated loop asks the boiler for roughly 68,000 BTU/hr of output before any allowance for distribution loss. A bid offering a 40,000 BTU/hr wall-hung boiler against that slab has not been sized to the same 50 W/sq ft standard the cable systems meet.
Running costs, and what storm count does to them
Every figure below uses the constants wired into this site's own heated-driveway calculator: 50 W/sq ft, 240 V, 16¢/kWh, and the recommended 3-hour after-run that evaporates residual meltwater so it cannot refreeze into a sheet of ice. Storm count is the only genuinely local variable, and it is the one a homeowner can look up.
| Layout | Heated area | Draw | Per hour | Per 6 h storm + 3 h after-run | Season at 10 storms |
|---|---|---|---|---|---|
| 20 x 20 ft full coverage | 400 sq ft | 20 kW | $3.20 | $28.80 | $288.00 |
| 20 x 20 ft tire tracks | 80 sq ft | 4 kW | $0.64 | $5.76 | $57.60 |
| 30 x 20 ft full coverage | 600 sq ft | 30 kW | $4.80 | $43.20 | $432.00 |
| 10 x 20 ft walkway approach | 200 sq ft | 10 kW | $1.60 | $14.40 | $144.00 |
| Plowable storms per season | Tire tracks, 80 sq ft (4 kW) | Full coverage, 400 sq ft (20 kW) | Walkway, 200 sq ft (10 kW) |
|---|---|---|---|
| 4 storms (mild) | $23.04 | $115.20 | $57.60 |
| 6 storms | $34.56 | $172.80 | $86.40 |
| 10 storms (calculator default) | $57.60 | $288.00 | $144.00 |
| 15 storms (hard winter) | $86.40 | $432.00 | $216.00 |
Tire tracks are two parallel 2-foot-wide tyre paths. On a 20 x 20 ft slab they cut heated area by 80%, and the element cost and seasonal energy fall with it. The trade-off is honest: only the tyre paths clear. Full coverage on the same slab costs five times as much to run and, as the electrical load article sets out, it will not fit a 200-amp service under the 40%-of-panel rule.
Maintenance, lifespan and repair
| Metric | Electric | Hydronic |
|---|---|---|
| Annual maintenance | $0 - no scheduled servicing | $150-$400/yr for boiler service, pump checks and glycol pH testing |
| Element lifespan | Cables rated 30-50 years, outlasting the pavement | PEX 20-30 years; boiler 15-20 years |
| Failure mode | Single cable break, located by thermal imaging and signal-travel testing, then spliced | Pressurised fluid leak beneath a cured slab |
| Slab requirement | 4 in. min., fiber-reinforced, 6% air-entrained over a 10 in. compacted base | Same slab specification, plus flue and gas line |
| Warranty condition | Signed three-stage resistance log registers the 10-year cable warranty | Boiler and tubing warranties plus service records |
The boiler is the tell. A hydronic system turns one buried component into three - boiler, pump, manifold - and adds a fluid whose chemistry must be monitored. Asked to melt 1 to 3 inches of snow per hour and then hold the surface dry through a 3-hour after-run,
Put a 30-year ledger against both and the maintenance line stops looking like a rounding error. Electric cable carries $0 of scheduled servicing and is rated 30 to 50 years, so it normally outlives the pavement it sits in. A hydronic system spends $150 to $400 a year on boiler service, pump checks and glycol pH testing - between $4,500 and $12,000 over 30 years - and replaces its boiler once inside that window, because a 15-to-20-year boiler life puts a second unit somewhere near year 18. The buried PEX lasts 20 to 30 years, which makes the fluid loop a second serviceable component rather than a permanent one.
Choose electric if, choose hydronic if
- Choose electric if the heated area is under about 700 sq ft, if there is no gas service to the garage, if you want no annual service contract, or if you are heating tyre tracks rather than the whole apron.
- Choose hydronic if heated area exceeds roughly 1,000 sq ft, if the driveway is long with a large heated footprint, or if a gas boiler already serves the property and the extra capacity is incremental.
- Fix the slab before either if the quote names a 3,000 psi gravel mix with no air entrainment. In a freeze-thaw climate that mix cracks and spalls in 10 to 15 years, and it will take the heating cable with it.
Where hydronic genuinely wins is above the electrical ceiling rather than on the running-cost curve. Under the 40%-of-panel rule, a 200-amp service can carry about 300 sq ft of full coverage and a 400-amp service about 610 sq ft; past those points the electric option needs a service upgrade or permanent zoning to cycle the load. A gas boiler adds almost nothing to the electrical panel, which is why long driveways with large heated footprints drift to hydronic once the service capacity, and not the energy price, becomes the binding constraint.
Spec handoff for the quote
- Element type and spacing: WSM cable or WSMM mats at 3 in. spacing, 50 W/sq ft of heated area, 240 V.
- Elements 1.5 to 3.0 in. below the finished surface, suspended on galvanised wire mesh held about 2 in. off the base.
- Slab: 4 in. minimum, fiber-reinforced, 6% air-entrained over a 10 in. compacted base at 98% standard Proctor density (ASTM D 698), with geotextile over clay.
- No cable crosses a full-depth expansion joint; where unavoidable, a 2 in. x 2 in. downward slack loop into the subgrade.
- Forecast-based controller with an above-roofline aerial snow switch and an in-slab limit sensor; sensor wiring in its own conduit.

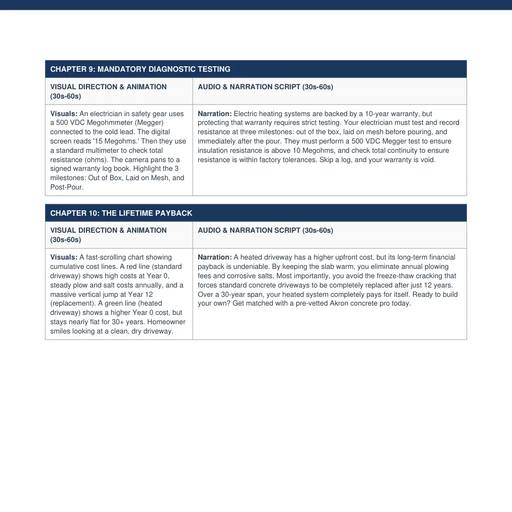

- Three-stage test log - 500 VDC Megger above 10 megohms and ohms within manufacturer tolerance - out of the box, laid on mesh, and post-pour.
Sources
Engineering figures come from the Residential Snow Melting Project Brief & Bid Specifications (v2.0, August 2026), published in full at /media/concrete-driveways/pdfs/heated-driveway-contractor-brief.pdf: the 50 W/sq ft density at 240 V, the WSM and WSMM element types, 3-inch spacing, the 1.5 to 3.0 inch depth window, 6% air entrainment, the 10-inch compacted base, 98% Proctor compaction, the splice burial rule, GFEP breakers and the 120% continuous-load margin. The reference brief was authored for a severe freeze-thaw Ohio siting profile with 47 in. average seasonal snowfall; the electrical and thermal constants are not climate-specific, but local snowfall and storm counts differ, so the storm-count table above is presented as a sensitivity range rather than a local prediction. The 1-to-3-inch hourly melt rate, the 9% freeze expansion figure and the layered cross-section come from the Anatomy of a Heated Driveway production script at /media/concrete-driveways/slides/. Running costs and the boiler design load were computed here from the constants in the Concrete Paving & Driveway Calculator Development Prompts (50 W/sq ft, 16¢/kWh, 6-hour storm plus 3-hour after-run, 10 storms per season) behind this site's calculators. The hydronic maintenance, lifespan and repair comparisons and the 30-to-50-year cable rating come from the concrete notebook's Modern Driveway Blueprint and Concrete Quiz content blueprints, which are costed on a reference-market baseline.
